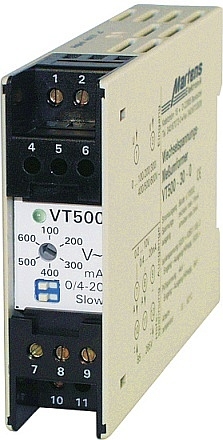

AC voltages transducer | VT 500

Produktbeschreibung

Standard case
DIN rail mounting TS35
Floor space 22.5x75mm (WxH)
Mounting height 110mm

Features

• 6 voltage measuring ranges, +/-35% adjustable
  0 ... 100 / 200 / 300 / 400 / 500 / 600V AC
• Frequency range 40 ... 2000Hz, basic wave (16_2/3Hz on request)
• Accuracy 0.5%;
  0.2% with optional calibration for one range
• Switch selectable averaging function
• Outputs 0/4 ... 20mA and 0/2 ... 10V DC
• Rise time (t90) <20ms
• Current burden max. 1000 Ω
• 0-point and measuring span adjustable
• Full 3-port isolation


The device converts true r.m.s. voltage measuring values of all types of waveforms into industry standard signals for process control systems.
