industry temperature probe | GTF 103

industry temperature probe | GTF 103


130,10 EUR

 inkl. 19 % USt  -> Preis zzgl. Versandkosten

Lieferzeit i.d. Regel ca. 0-4 Arbeitstage für Standardausführung

Art.Nr.: GTF103
standard signal:
O: without output signal:
RT: with output signal 4 to 20 mA, 2-wires, RT420 (only Pt 100) (+ 100,00 EUR) :
GI: with output signal 4 to 20 mA, 2-wires, GITT 01 (NiCr-Ni or Pt 1000) (+ 188,50 EUR) :
T0: with output signal 0 to 10 V, 3-wires, T03 BU (only Pt100) (+ 104,60 EUR) :
sensor:
K: NiCr-Ni type K:
T: Pt 1000:
P: Pt 100:
connection sensor element:
2L: 2 wires:
3L: 3 wires:
4L: 4 wires:
measuring insert:
0: measuring insert not replaceable:
MA: measuring insert replaceable (+ 43,20 EUR) :
probe diameter:
30: 3 mm:
40: 4 mm:
60: 6 mm:
80: 8 mm:
process connection:
G1: G 1/2:
G2: G 1/4 (+ 12,40 EUR) :
G5: G 3/8 (+ 12,40 EUR) :
installation length:
0050: 50 mm:
0100: 100 mm:
0250: 250 mm (+ 10,80 EUR) :
0500: 500 mm (+ 21,70 EUR) :
neck pipe length (mm):
000: without:
050: 50 mm (+ 5,45 EUR) :
100: 100 mm (+ 5,45 EUR) :
accuracy:
1: class 1 (only with NiCr-Ni):
A: DIN class A (only with Pt100 / Pt1000) (+ 6,90 EUR) :
B: DIN class B (only with Pt100 / Pt1000):
D: DIN class AA (1/3 DIN class B) (only with Pt100 / Pt1000) (+ 6,90 EUR) :
Z: 1/10 DIN class B (only with Pt100) (+ 48,30 EUR) :
measuring range:
MB1: -50 to +200°C:
MB2: -50 to +400°C:
MB3: -50 to +600°C:
terminal head:
A: probe head made of aluminium (DIN B head):
E: probe head made of stainless steel (+ 106,00 EUR) :
K: probe head made of plastic:
S: small probe head (construction type DE):

Bitte beachten Sie stets die Bestellhinweise auf den einzelnen Datenblättern!

Produktbeschreibung



custom-designed temperature probe

Temperature probe that can be fully designed according to customers' requirements, measurement with resistance temperature sensors or thermocouple.


Price for basic configuration! The exact price can be determined after receipt of the desired customer specifications!


Further options (different measuring range, arbitrary installation length, different thread, longer cable, etc.) are possible for an additional charge. Please contact us!



odering type
   applications / dimensions (mm) / technical specifications
GTF 103


custom-designed temperature probe

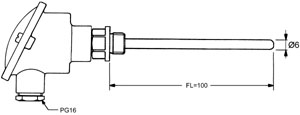

standard version (Pt100):

- DIN B-head (lacquered aluminium) G 1/2" (= 1.27 cm) thread, FL = 100 mm, D = 6 mm diameter
- thread and probe tube made of V4A (1.4571) and welded
- Pt100 class B in 2-, 3- or 4-wire connection (please specify in order)


special version (additional charge):

- arbitrary probe length FL: additional charge per 100 mm
- possible sensors: Pt100, Pt1000, NiCrNi
- other connection heads: made of plastic, made of stainless steel, design type DE
- probe insert exchangeable or removable
- built-in head transmitter Pt100 / 4 to 20 mA output (GTF 103/RT420)
- with galvanically isolated measuring transducer, 4 to 20 mA output (GTF 103/GITT)
- higher accuracies




catalogue page as .pdf:
