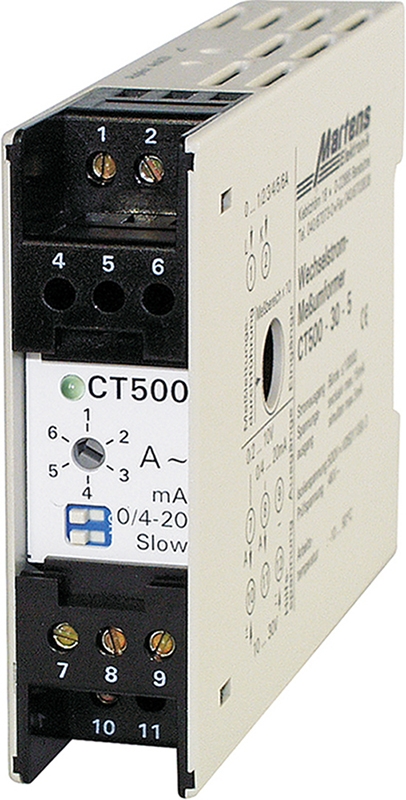

AC current transducer | CT 500
357,00 EUR
inkl. 19 % USt -> Preis zzgl. Versandkosten
Lieferzeit bzw. Fertigungszeit variiert - bitte erfragen!
Art.Nr.: CT500Produktbeschreibung
Standard case
DIN rail mounting TS35
Floor space 22.5x75mm (WxH)
Mounting height 110mm
Features
- 12 current measuring ranges,
+/- 35% adjustable
terminal connection (In) 0 ... 1 / 2 / 3 / 4 / 5 / 6 A
bushing connection 0 ... 10 / 20 / 30 / 40 / 50 / 60 A - Frequency range 40 ... 2000Hz, basic wave (162/3 Hz on request)
- Accuracy 0.5%;
0.2% with optional calibration for one range - Switch selectable averaging function
- Outputs 0/4 ... 20mA and 0/2 ... 10V DC
- Rise time (t90) <20ms
- Current burden max. 1000 Ω
- 0-point and measuring span adjustable
- Full 3-port isolation
General information
AC current transmitter CT500 converts true r.m.s. current measuring values of all types of waveform into industry standard signals for process control systems.
For example, the load current of an frequency converter can be detected and converted.
For further
details please see data sheet:
instruction manual as .pdf:
 |
